EFS C. Type Pulse Clean Units EFS C. Type Pulse Clean Units

EFS C. Type Pulse Clean Units

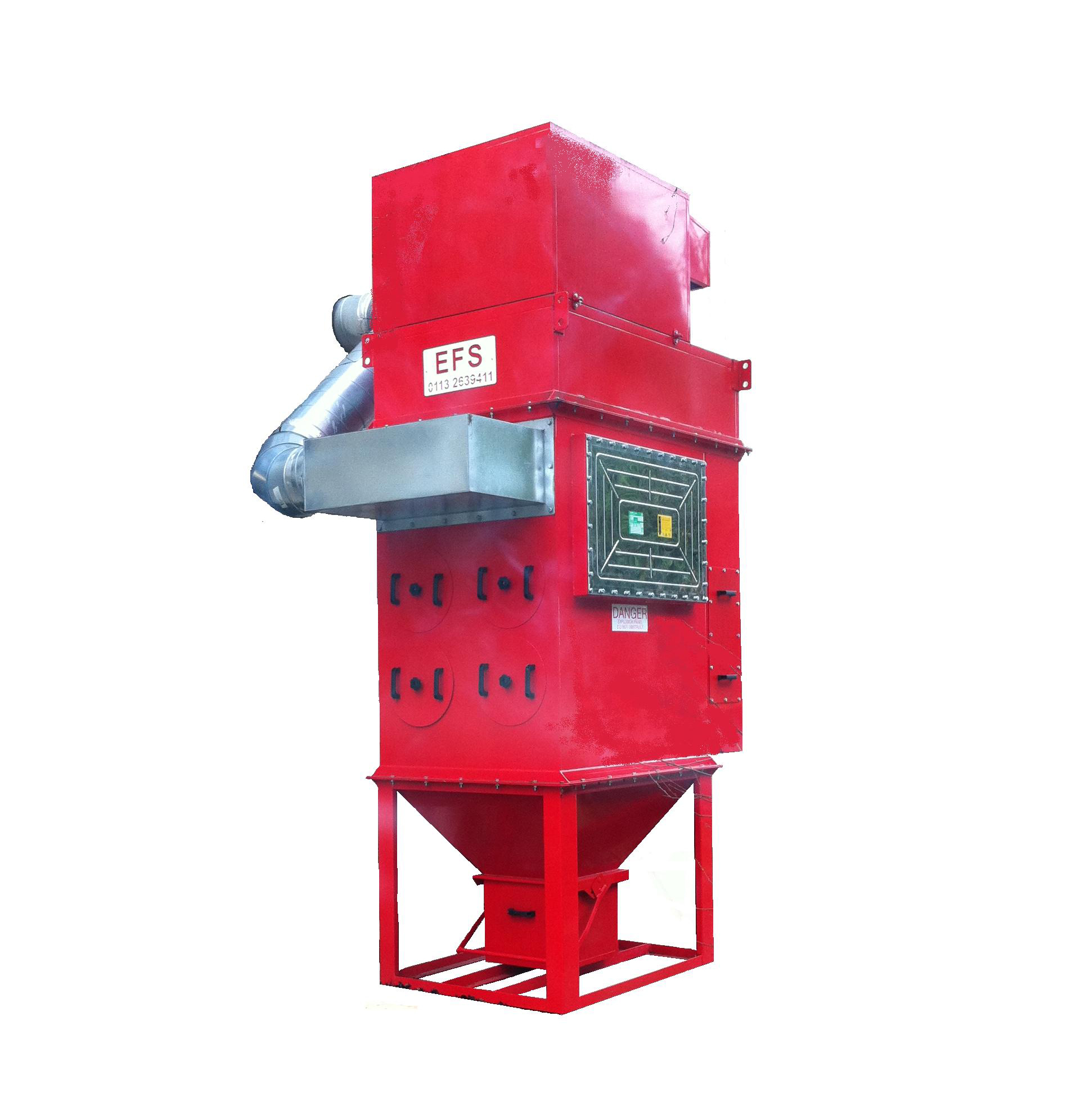

The EFS C pulse jet cleaning, free standing cartridge unit has been designed for use in a dust control applications where a compact, high efficient dust control unit that is required to operate continuously over long periods of time is required.

The EFS C pulse jet unit utilises automatic constant pneumatic cleaning of the cartridges which allows the unit to be operational for long lengths of time without the need to stop the system for clean down of the filter media.

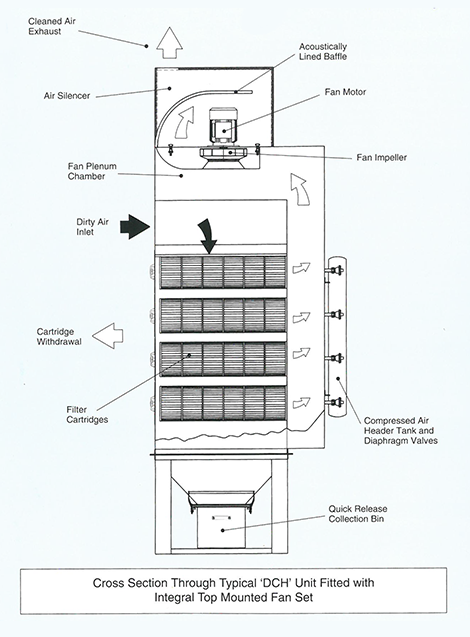

The cartridges used by EFS are of a single open ended type therefore there is only one seal required on the open ended dust end. Due to the high levels of filtration that can be achieved by the use of cartridges this allows for a more compact unit design that requires less floor space, but can still achieve high filtration levels .Cleaning of the cartridge elements is carried out by means of compressed air injection from the clean air side, this reverses the normal flow of air through the cartridge element, with the passage of air dislodging the dust held on the cartridge which drops into the collection bin. Cleaning of the elements takes place on a continuous basis with a run-on-timer fitted as standard.

The EFS C standard units are built in three different configurations 2, 3 and 4 high with a maximum total of 24 cartridges being employed in the 4 high configurations, the range of EFS C come in two basic designs either with an integral fan set or without.

Quick release bins are provided at the hopper section, however alternative hopper designs can be accommodated if required eg: hoppers with bagging off facilities or single waste discharge outlet hopper with rotary valve.

Unit size          No of cartridges   No of bins   Filter area
2C4
3C6
4C8
3C12
4C16
3C18
4C24
4
6
8
12
16
18
24
1
1
1
2
2
3
3
62.4
193.6
124.8
187.2
249.6
280.8
374.4
